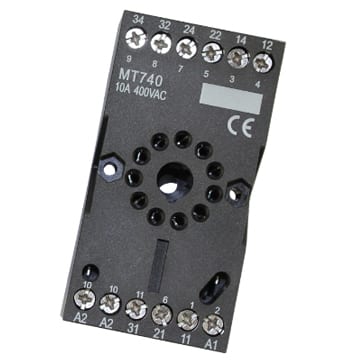

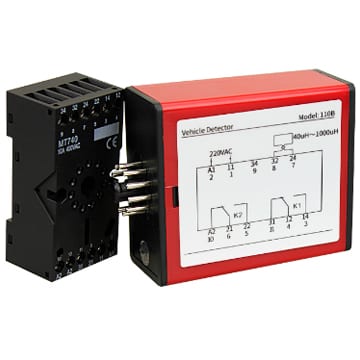

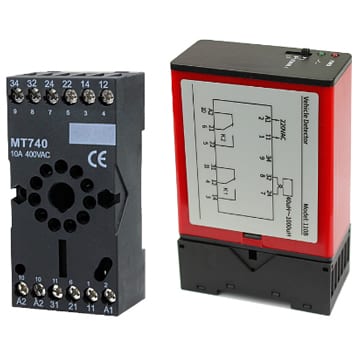

PD-110B Single Vehicle Door Detector
PD-110B Single Vehicle Door Detector its working principle is that the metal parts of the vehicle will Change the inductance of the detection loop through the microcontroller An analysis is performed to determine if the vehicle exists. Mainly used For controlling electric doors, quick doors, barriers, and Involving a field requiring the presence detection of a vehicle Together. Featurer: > Industrial grade design, superior anti-interference ability and stability. > Adjustable Multi-level sensitivity to meet various needs. > Support multiple output interfaces to adapt to different scenarios. > Support loop coil self diagnosis checking. > Working with boom barrier gate, it can realize gate automatic close after vehicle passes. > Support for environmental drift compensation. Product Parameter Parameter Descr1ption S4A Model PD-110B Product Name Single Vehicle Door Detector Power supply AC220V/50Hz 4.5W Sensitivity 3 levels adjustable (low, medium, high) Reaction time 35ms Working frequency One level adjustable Maximum coil 8Mx1M Size 112x73x38mm Output method Relay Probe lead Within 10 meters Delay function Three-stage delay adjustable (1st gear 0.7s)
