ACCESSORIES

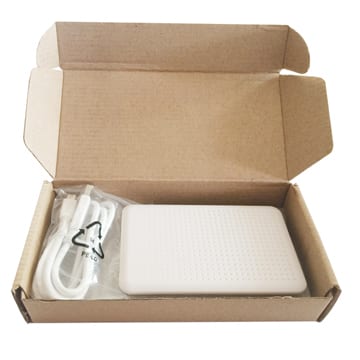

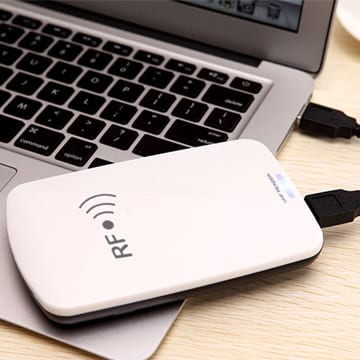

UHF-05USB UHF USB Desktop Reader and Writer
UHF-05 is a high performance UHF RFID desktop Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system. Features: 1 Self-intellectual property; 2 Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag; 3 860~868MHz, 902~928MHz frequency band(frequency customization optional); 4 FHSS or Fix Frequency transmission; 5 RF output power up to 13dbm(adjustable); 6 No external power source needed; 7 Built-in antenna with effect distance up to 200mm*; 8 Support USB2.0 interface with VSP(Virtual Serial Port) or HID mode; 9 Slim outline; 10 Provide SDK and demo software to facilitate further development. * Effective distance depends on protocol, tag and environment.
